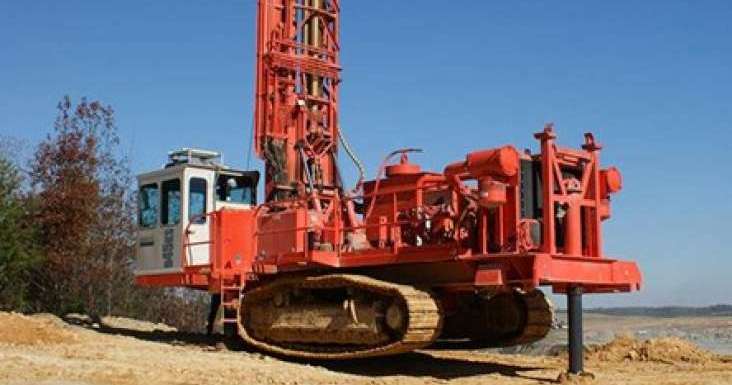

D45KS ROTARY BLASTHOLE DRILL RIG
Our Sandvik D45KS blasthole drill is ideal for coal, gold and iron ore mining. It drills holes with a diameter of 152 - 229 millimeters (6 - 9 inches) down to a maximum depth of up to 63 meters (208 feet). This blasthole drill rig offers easy maintenance and repairs for applications where availability and reliability are critical.
| Engine power range | 469 - 522 kW |
| Max hole depth | up to 63 m |
| Dimension (L-W-H) | 10,300 x 4,978 x 16,040 mm |
| Dimension mast down (L-W-H) | 14,200 x 3,810 x 4,450 mm Width shipping |
| Hole diameter | 162 - 222 mm |
| Operating weight (empty) | 47,726 kg |
| Rotary head | 194 rpm / 8,221 Nm Maximum rpm / torque |
| First pass depth (single-pass) | 8.7 m |
| Compressor range | 28.3 - 32.8 m3 / min |
| Drilling technique | DTH |
- Open in-line engine design for easy maintenance and serviceability
- Compact, powerful drilling platform for stability and support
- Durable design for low operating costs and superior longevity
- Excellent visibility for a productive operator environment
- Effective pipe handling for shorter lead times and increased productivity
