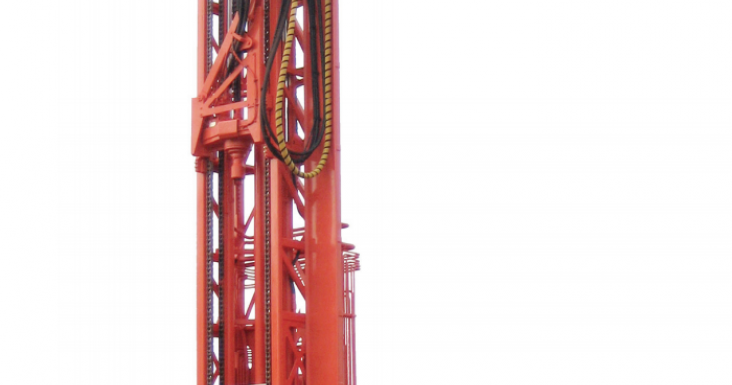

D50KS ROTARY BLASTHOLE DRILL RIG
Sandvik D50KS blasthole drill handles a broad range of surface mining applications. It drills holes with a diameter of 152 - 229 millimeters (6 - 9 inches) down to a maximum depth of up to 45 meters (148 feet). This machine offers maximum productivity for both soft rock and hard rock drillers.
| Technical data | |
|---|---|
| Engine power range | 403 - 522 kW |
| Max hole depth | up to 45 m |
| Dimension (L-W-H) | 10,300 x 4,900 x 11,400 mm |
| Dimension mast down (L-W-H) | 14,200 x 3,810 x 5,820 mm Width shipping |
| Hole diameter | 152 - 229 mm |
| Operating weight (empty) | 47,727 kg |
| Rotary head | 194 rpm / 6,643 Nm Maximum rpm / torque |
| First pass depth (single-pass) | 8.7 m |
| Compressor range | 29.7 - 45.3 m3 / min |
| Drilling technique | Rotary |
- Open in-line engine design for easy maintenance and serviceability
- Compact, powerful drilling platform for stability and support
- Durable design for low operating costs and superior longevity
- Excellent visibility for a productive operator environment
- Effective pipe handling for shorter cycle times
