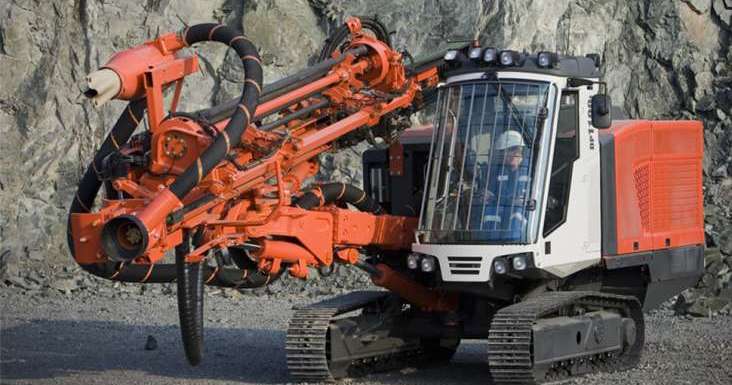

PANTERA DP1100i SURFACE TOP HAMMER DRILL RIG
Pantera DP1100i is a hydraulic, diesel-powered, self-propelled top-hammer drill rig, and it is the ideal choice for production or pre-split drilling in large quarries or open pit mines and construction sites. This intelligent, crawler-mounted rig produces a range of drilling information, including the condition of the drill and work performed. It drills holes with a diameter of 89 to 140 millimeters (3 ½ to 5 ½ inches).
| Technical data | |
|---|---|
| Recommended hole diameter | 89 - 140 mm (3 ½ -5 ½ in.) |
| Drill rod / tube diameter | 51, 60 mm (2, 2 3/8 in.) |
| Hydraulic rock drill | HL1060T, 25 kW (34 hp) |
| Engine | Caterpillar C9, 224 kW (300 hp) / 1 800 rpm (Tier3) Caterpillar C9.3, 224 kW (300 hp) / 1 800 rpm (Tier4F) |
| Flushing air capacity | 11 m³/min, up to 10 bar (depends on rock tools) |
| Operator cabin | Ergo cool |
| Certificate | ROPS and FOPS |
| Transport Length | 11.5 m (37.7 ft) |
| Transport Width | 2.5 m (8.2 ft) |
| Transport Height | 3.2 m (10.5 ft) |
| Weight | 22,900 kg (50,490 lbs) |
- Active engine control delivers proper power and reduces fuel consumption when maximum power is not needed
- High-frequency rock drill delivers more impacts with greater power, providing improved penetration rates
- Access via gull wing doors offers easy maintenance, which reduces overeall downtime
- Low fuel consumption and low emissions reduce costs of operation, maximizing return on investment
